backofen rauchfang auto CAD chimney and oven

backofen rauchfang auto CAD image of chimney and wood oven

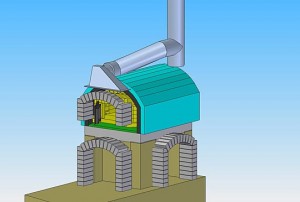

The construction of the flue and stainless steel chimney for this wood fired oven and the different arches in the 2nd wall. The dome of the oven with the different layers (fire bricks, concrete cladding, backup insulation) and the door. Image created in a 3D auto CAD program ( SolidEdge ).

Respond to the backofen rauchfang auto CAD chimney and oven article:

1 Comment - post your thoughts

  1. I like the way your oven is long (rectangular instead of round).. I want mine to be big enough to cook for many. The ones I have seen are much smaller. I would be interested to get the dimensions of your oven please. Danke
